Add on-premises servers to the default server group

Overview

This topic describes how to add on-premises servers to the default server group. Before you use the Server Load Balancer(SLB) service, you must add at least one backend serverto the default server group to receive requests.

Prerequisites

Applications are deployed on the on-premises servers, and the servers are ready to receive requests.

Procedure

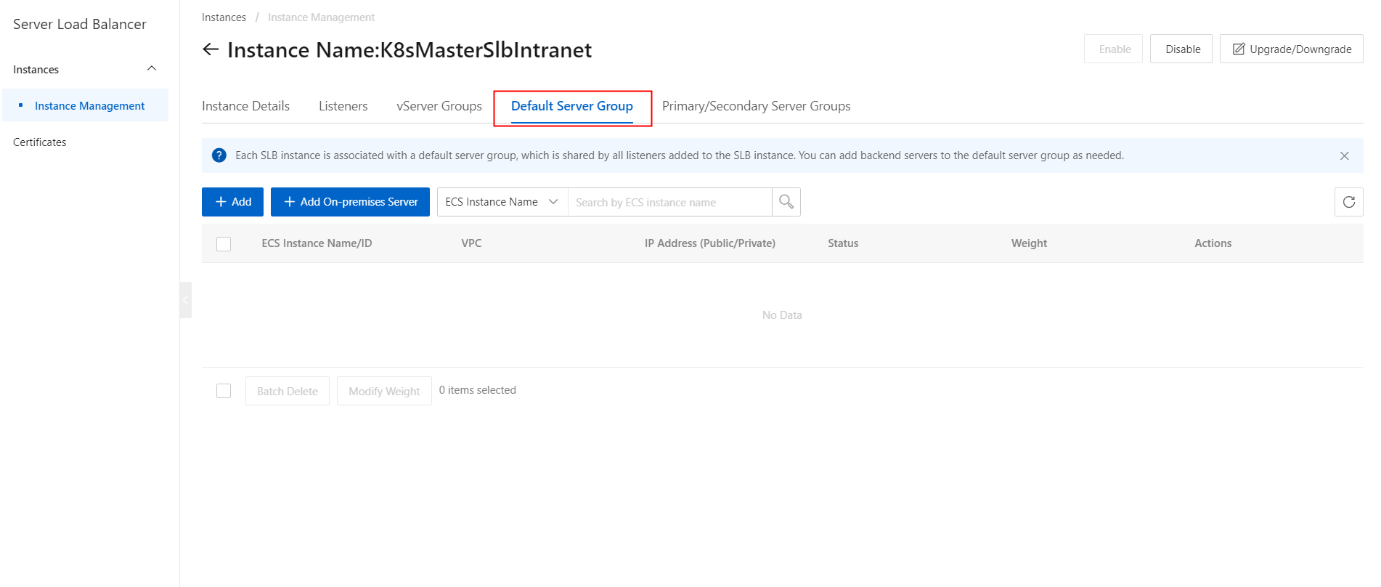

  1. On the SLB management console interface, select the target SLB instance, click the instance to enter the instance details, and click the Default Server Group tab. fg-dc-slb-3.3.3-1

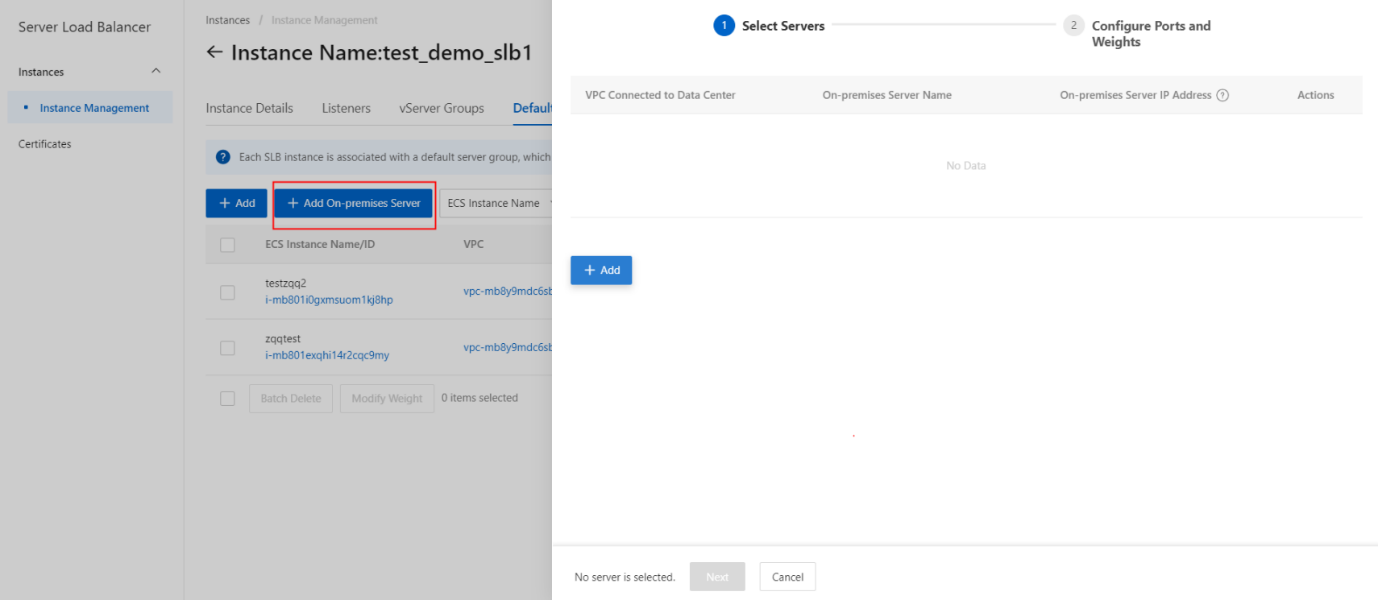

  2. Click Add On-premises Server. fg-dc-slb-3.3.3-2

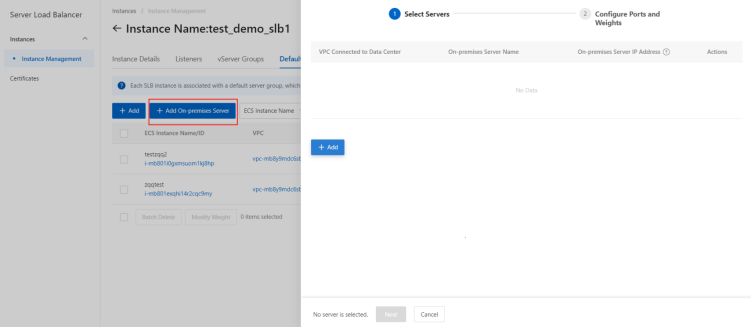

  3. In the My Servers panel, click Add. fg-dc-slb-3.3.3-3
  4. Select a virtual private cloud (VPC) fromthe VPC Connected to IDC drop-down list, enter a name for the on-premises server that you want to add, and then specify the IP address of the server, and then click Next. fg-dc-slb-3.3.3-4

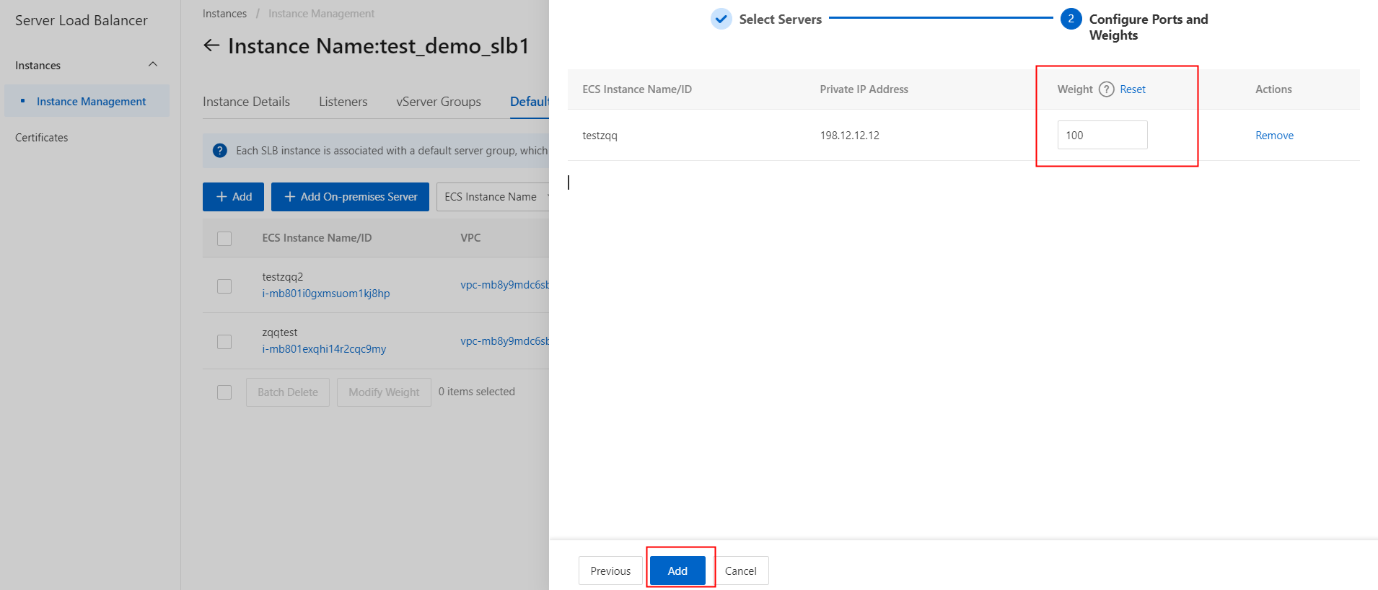

  5. On the Configure Port s and Weight s wizard page, specify the weight of each on-premises server, and then click Add. fg-dc-slb-3.3.3-5

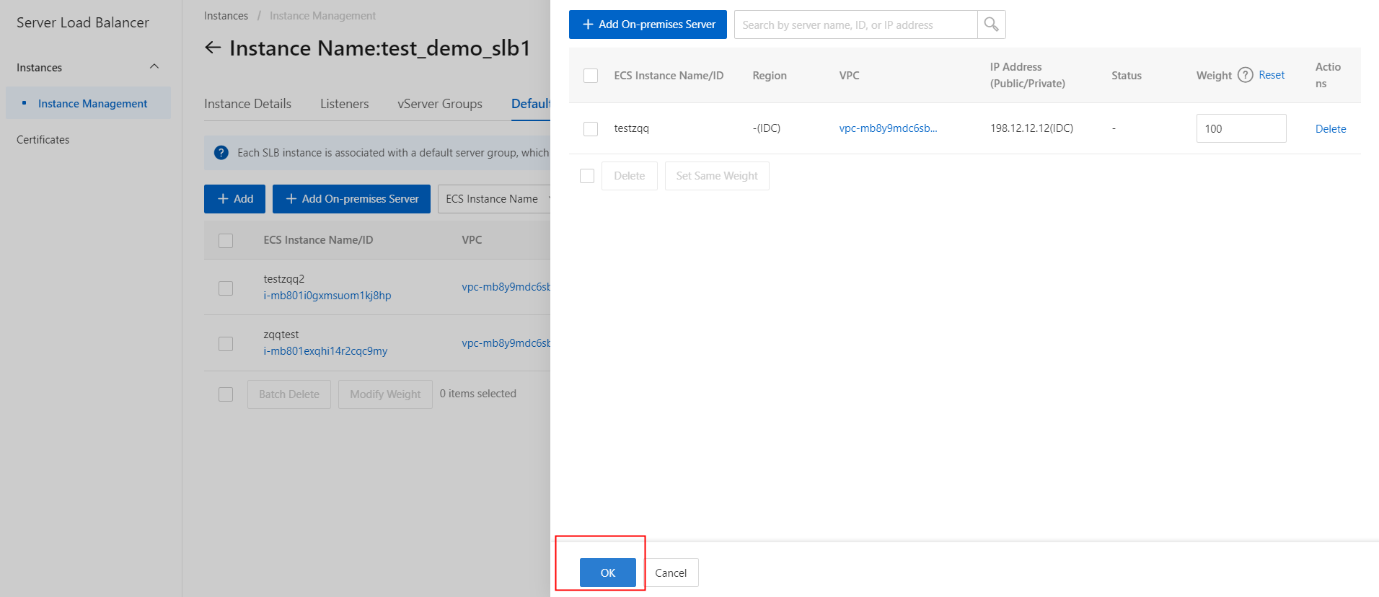

  6. Click OK to create on-premises servers successfully. fg-dc-slb-3.3.3-6
