Associate an HAVIP with an ENI

Procedure

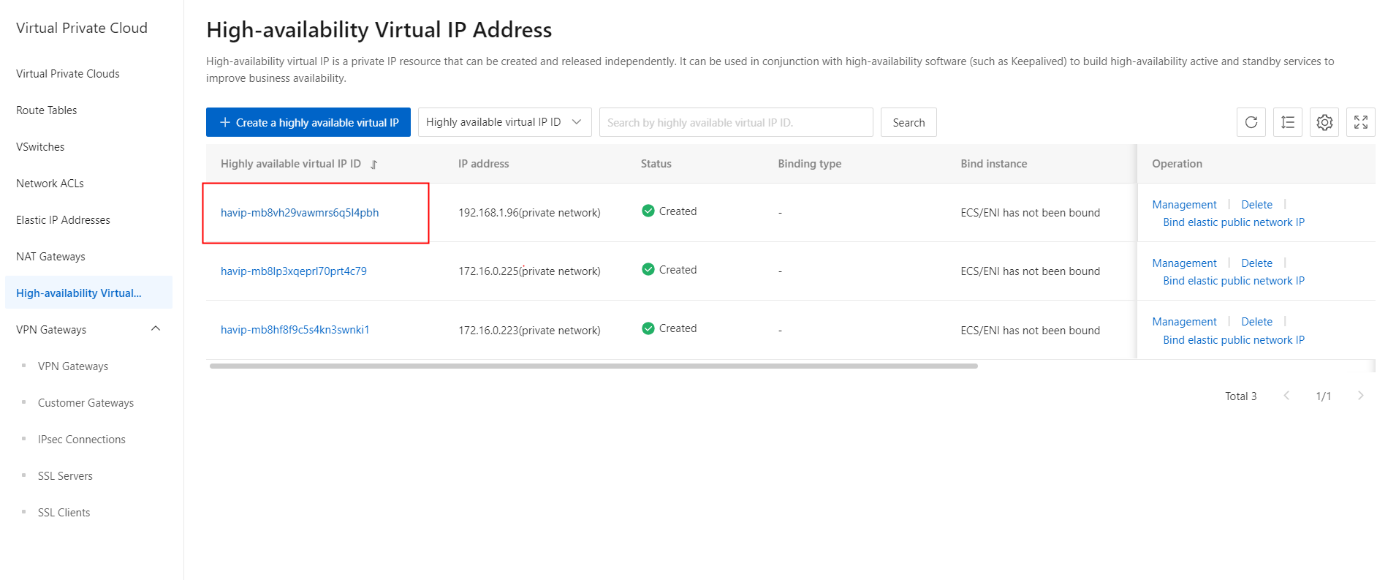

  1. On the HaVip page, find the HAVIP and click its ID. fg-dc-havip-2.3-1

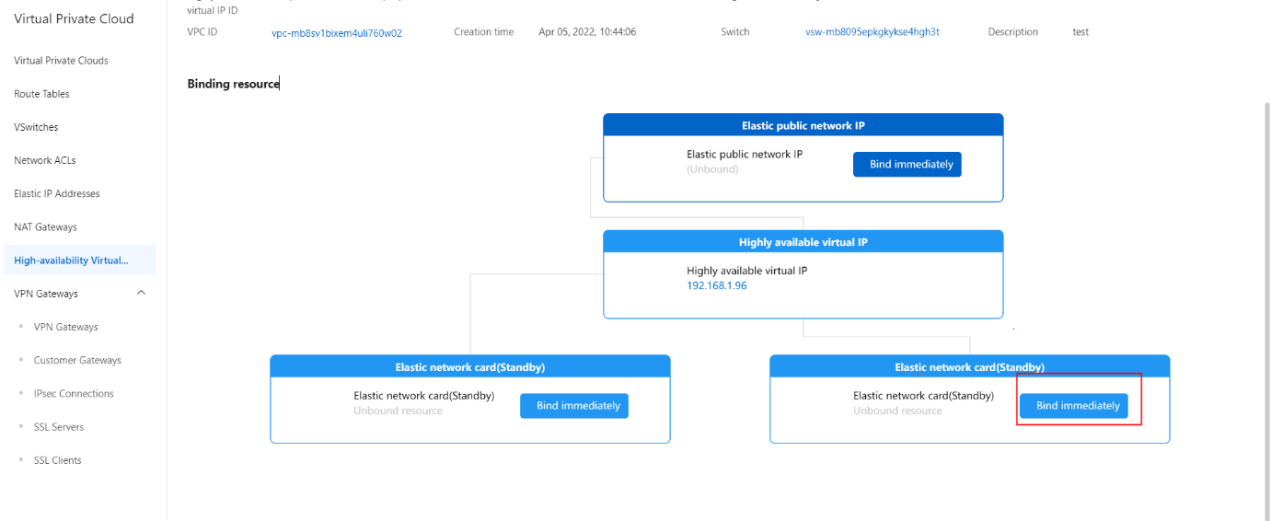

  2. In the Resources section, find ENI Instances and click Bind immediately. fg-dc-havip-2.3-2

  3. In the dialog box that appears, set the following parameters, and then click OK.

ParameterDescription
Resource TypeSelect the type of resource with which you want to associate the HAVIP. Supported resource types are:
· ECS Instance
· ENI
In this example, ENI is selected.
Bind ResourceSelect the ECS instance to which the ENI belongs, and then select the ENI.
The ENI and HAVIP must belong to the same VSwitch.

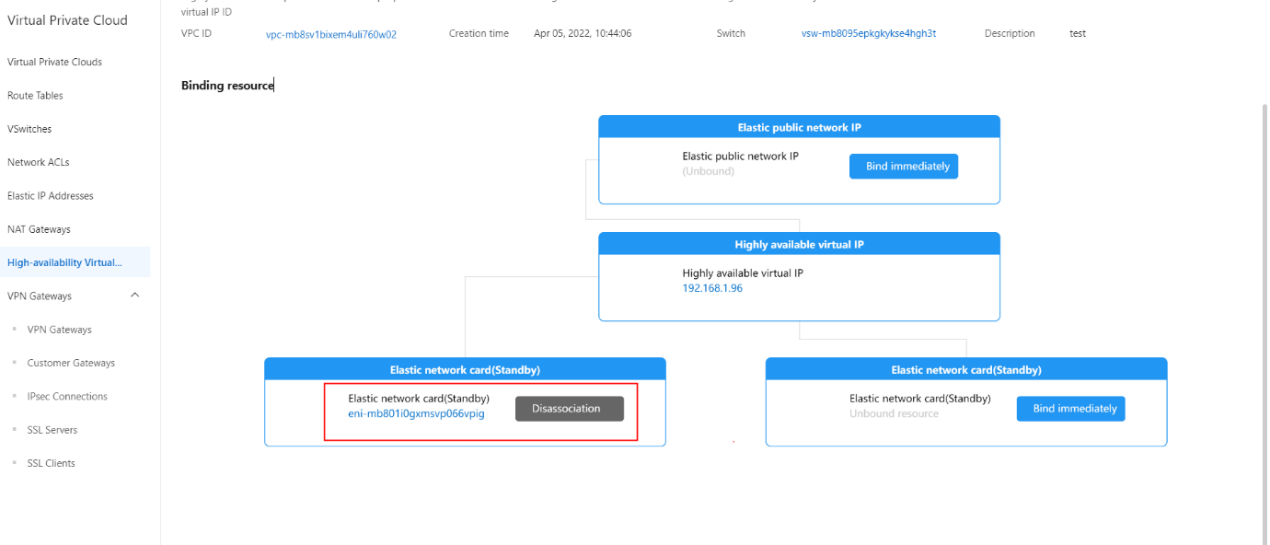

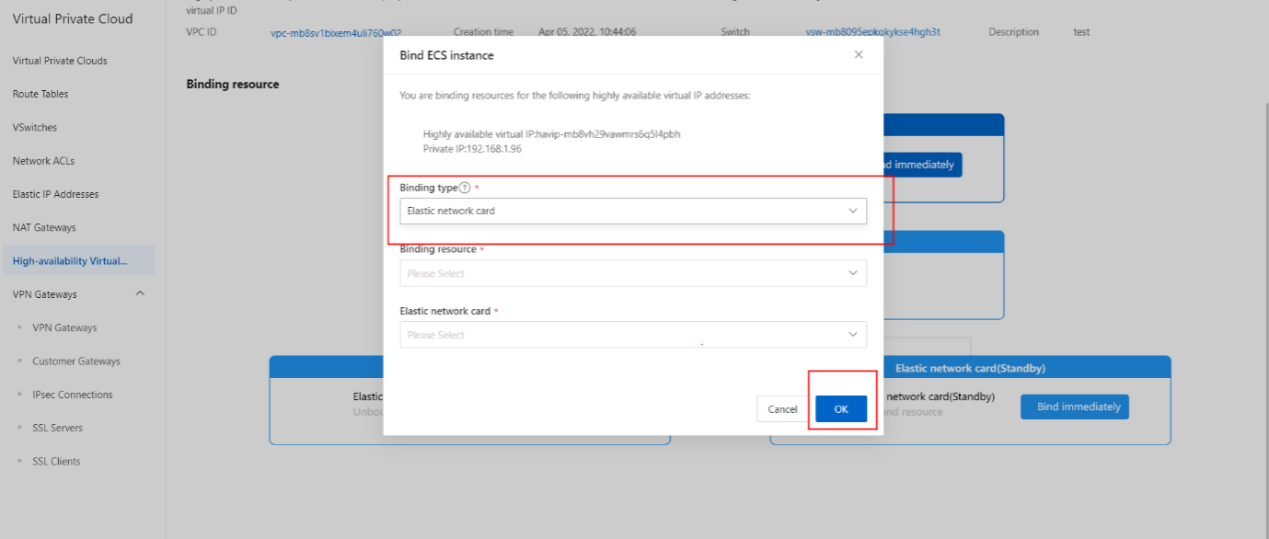

fg-dc-havip-2.3-3 fg-dc-havip-2.3-4
