Associate an HAVIP with an ECS instance

Procedure

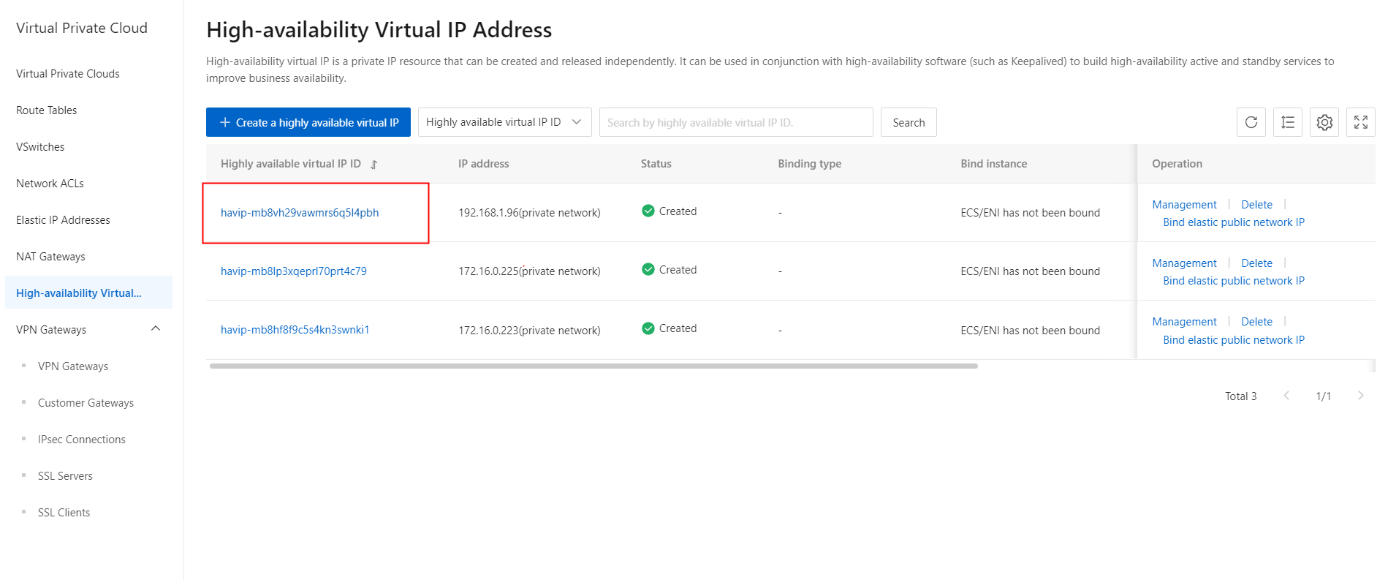

  1. On the HaVip page, find the HAVIP and click its ID. fg-dc-havip-2.2-1

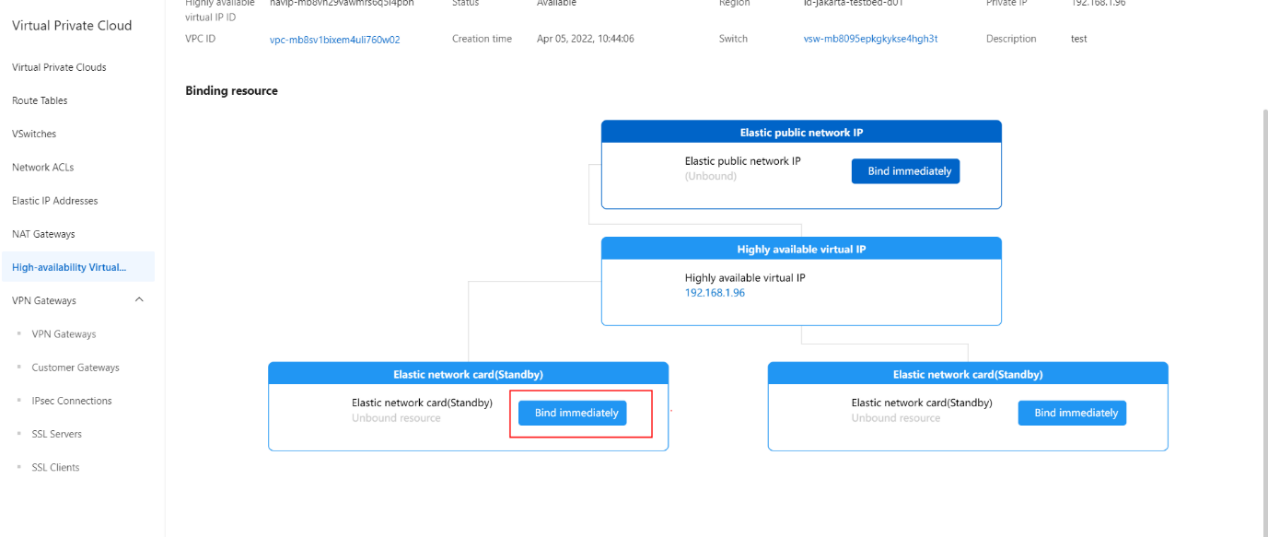

  2. In the Resources section, find ECS Instances and click Bind immediately. fg-dc-havip-2.2-2

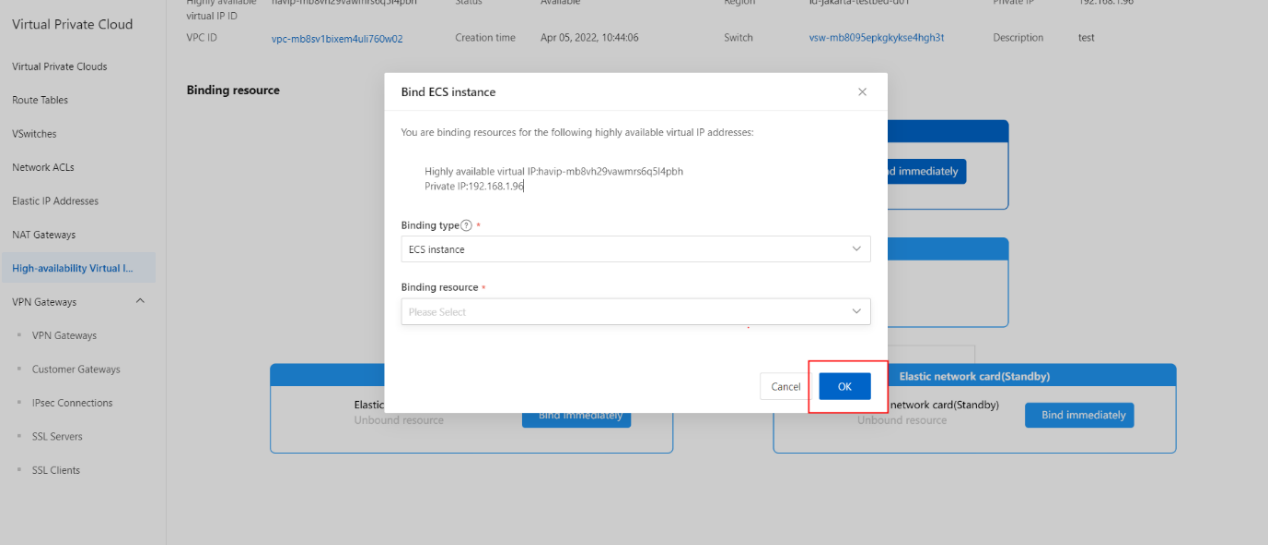

  3. In the dialog box that appears, set the following parameters, and then click OK.

ParameterDescription
Resource TypeSelect the type of resource with which you want to associate the HAVIP. Supported resource types are:
· ECS Instance
· ENI
In this example, ECS Instance is selected.
Bind ResourceSelect the ECS instance with which you want to associate the HAVIP.
The ECS instance must meet the following requirements:
· The ECS instance is deployed in a VPC.
· The ECS instance and the HAVIP belong to the same VSwitch.

fg-dc-havip-2.2-3 fg-dc-havip-2.2-4
