Configure a security group

Overview

This topic describes how to configure a security group to control the inbound and outbound traffic of Elastic Compute Service (ECS) instances in the security group after an IPsec-VPN connection is created.

Procedure

1. In the left-side navigation pane, choose VPN > IPsec Connections.

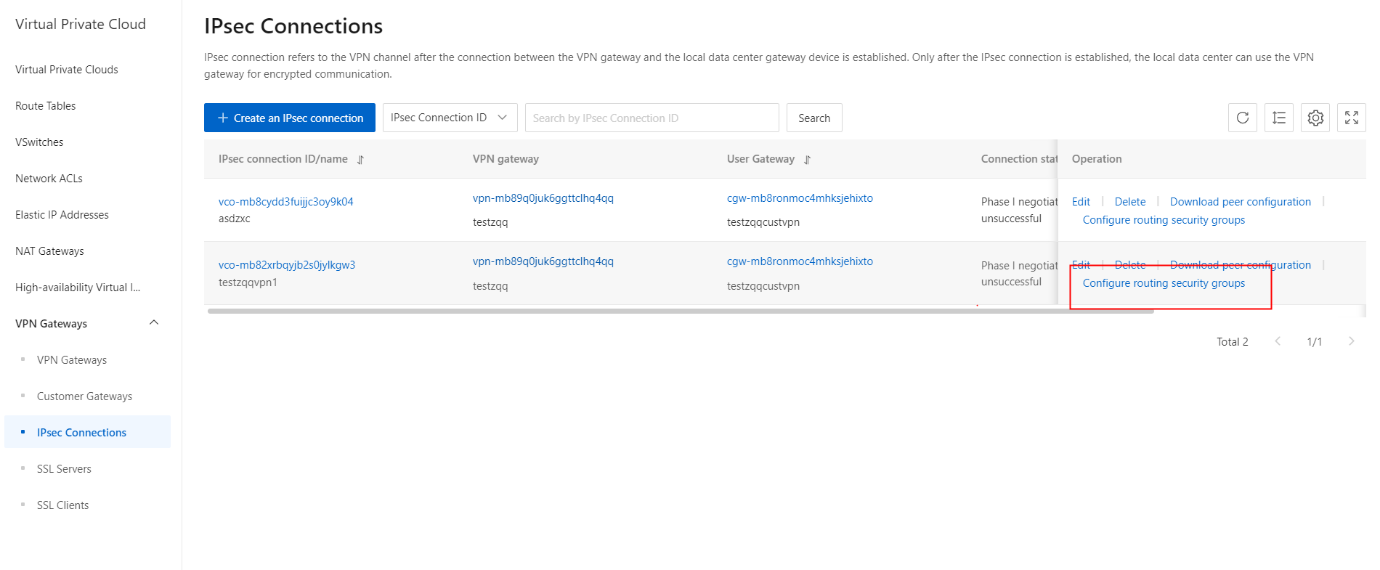

2. On the IPsec Connections page, find the IPsec-VPN connection that you want to manage and click Configure routing security groups in the Operation column.

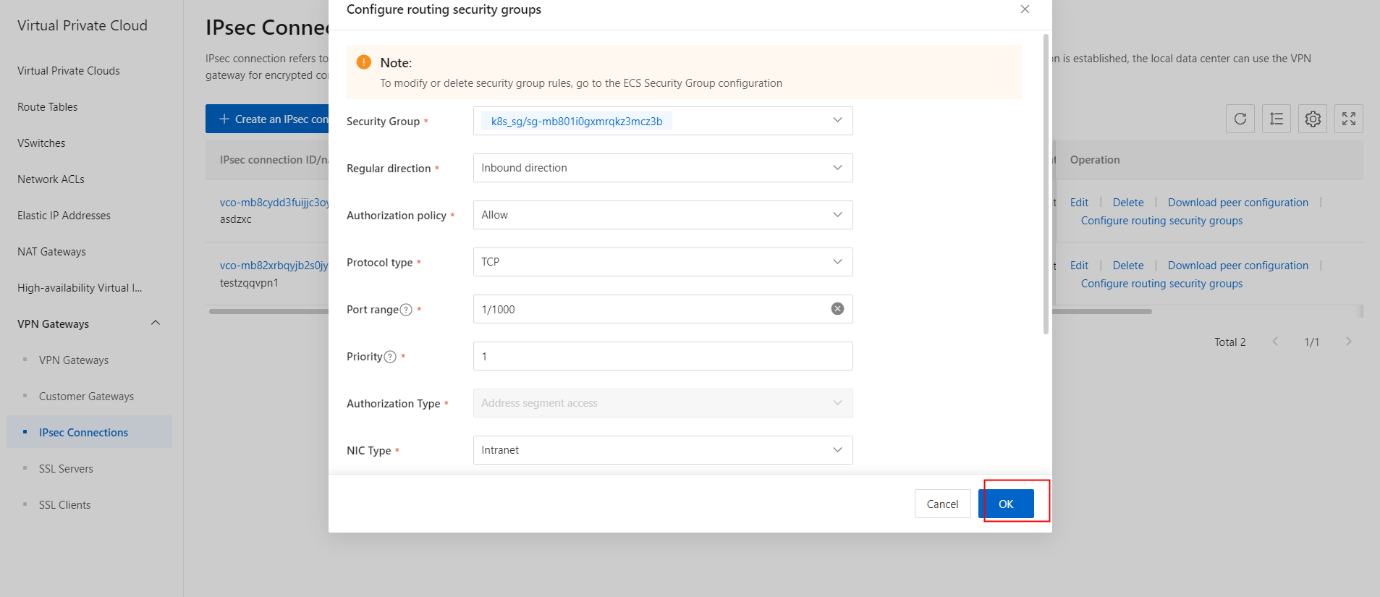

3. In the Configure routing security groups dialog box, set the following parameters and click OK.

Parameter	Description
Security Group	Select the security group to which you want to add the security group rule.
Regular direction	Select the direction to which the security group rule applies. · Out direction: controls data transfer from the ECS instances in the security group to the Internet or other ECS instances. · Inbound direction: controls data transfer from the Internet or other ECS instances to the ECS instances in the security group.
Authorization policy	Specify the action to be performed on the requests that match the rule. · Allow : accepts requests. · Deny : denies requests without returning a response. If two security group rules use the same settings except for the action, the Deny action prevails over the Allow action.
Protocol type	Select a protocol for the security group rule.
Port range	Enter a port range for the security group rule. Valid values: -1 and 1 to 65535. You cannot enter only -1. Examples: 1/200 specifies port s 1 to 200. 80/80 specifies port 80. -1/-1 specifies all ports.
Priority	Set the priority of the rule. Valid values: 1 to 100. The default value is 1, which indicates the highest priority.
Authorization Type	Specify the type of addresses that the security group rule allows or denies. Only Address segment access is supported.
NIC Type	Specify the type of data transfer that the security group rule controls. · Internal : controls data transfer within stack. · External : controls data transfer over the Internet.
Authorization object	Specify the CIDR blocks that you want the security group rule to allow or deny. You can specify at most 10 CIDR blocks.
Automatic routing	Specify whether to automatically advertise routes. This feature is disabled by default.
Description	Enter a description for the security group rule. This parameter is optional. If you enter a description, the description must be 2 to 256 characters in length, and cannot start with http:// or https://.
