Database Agent
Database Exclusive Proxy

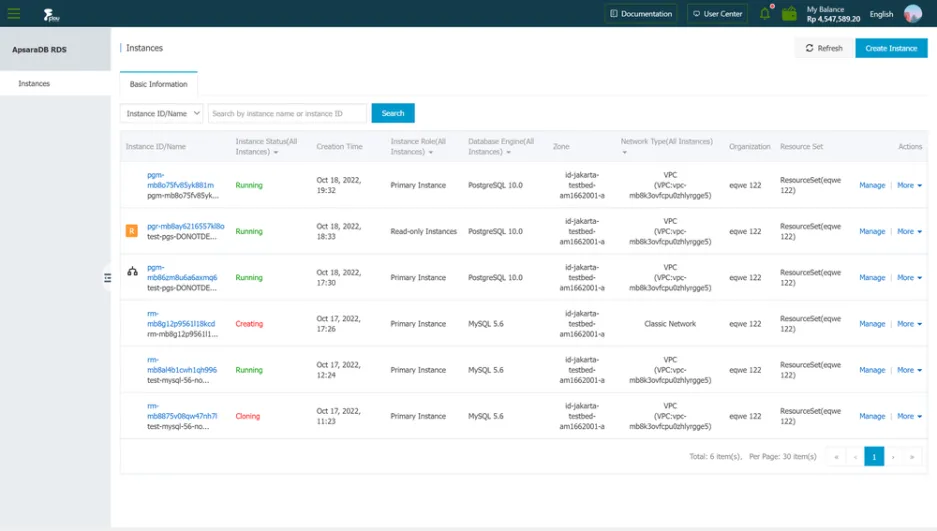

1) Log in to the RDS console.
-3.5-1.png)
2) On the cloud database management page, click the target instance ID or click Manage under the operation column on the right side of the instance to open the basic information page.
-3.5-2.png)
3) Click Database Proxy in the left navigation bar.
-3.5-3.png)

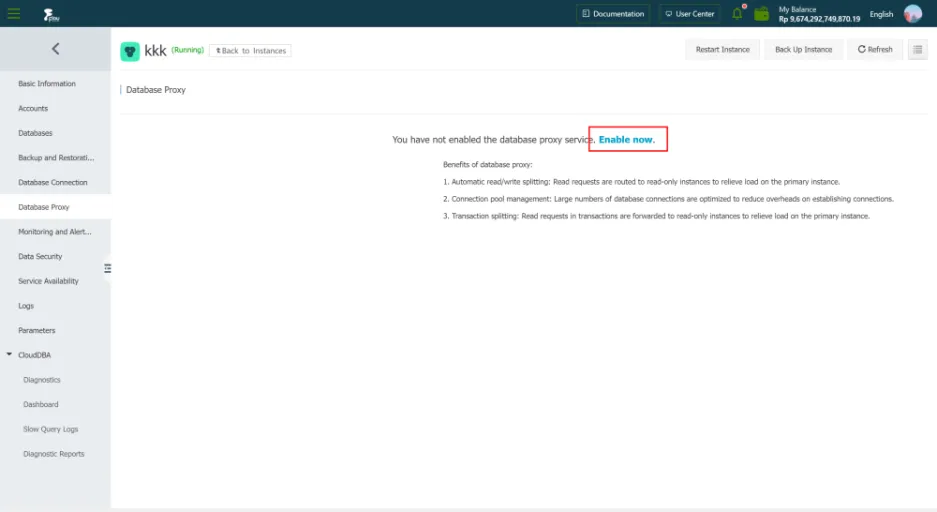

4) Click Enable Now.
-3.5-4.png)
Short Connection Optimization Function
1) Log in to the RDS console.
-3.5-5.png)

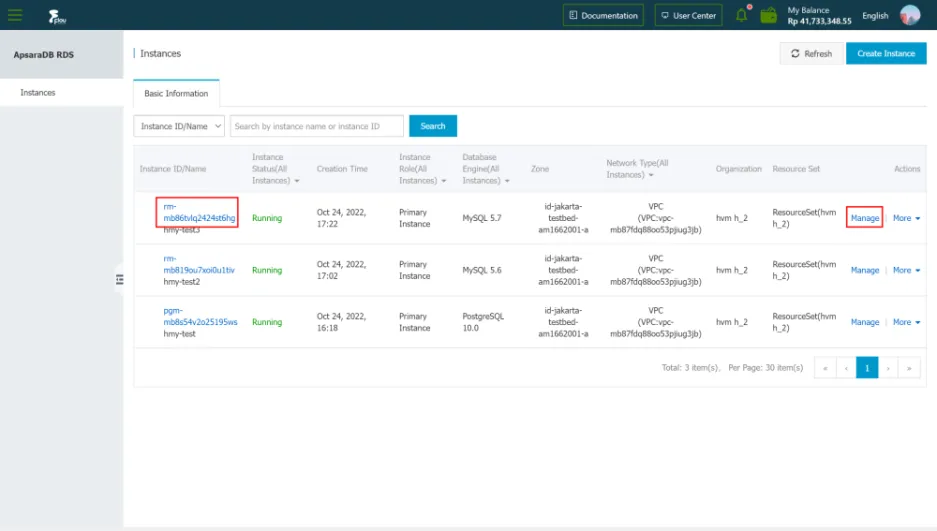

2) On the cloud database management page, click the target instance ID or click Manage under the operation column on the right side of the instance to open the basic information page.
-3.5-6.png)
3) Click Database Proxy in the left navigation bar.
-3.5-7.png)

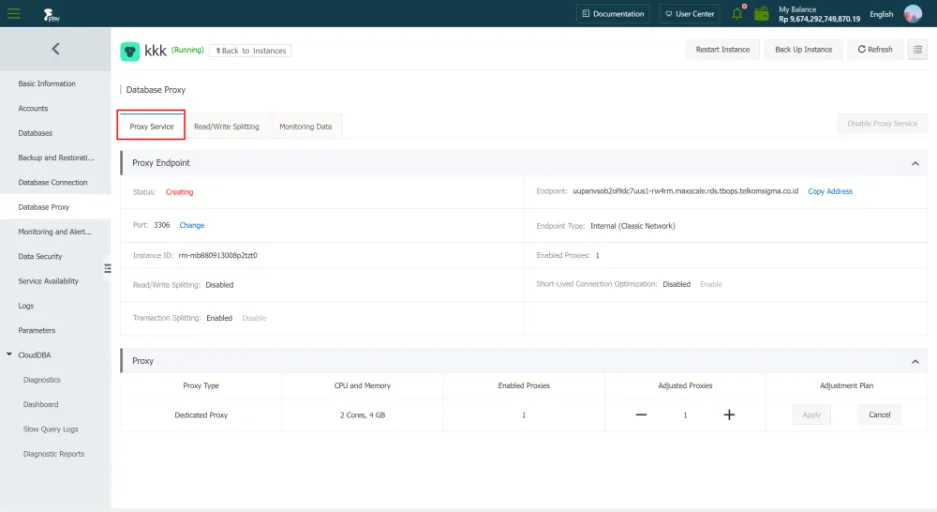

4) Click the Proxy Service tab.
-3.5-8.png)

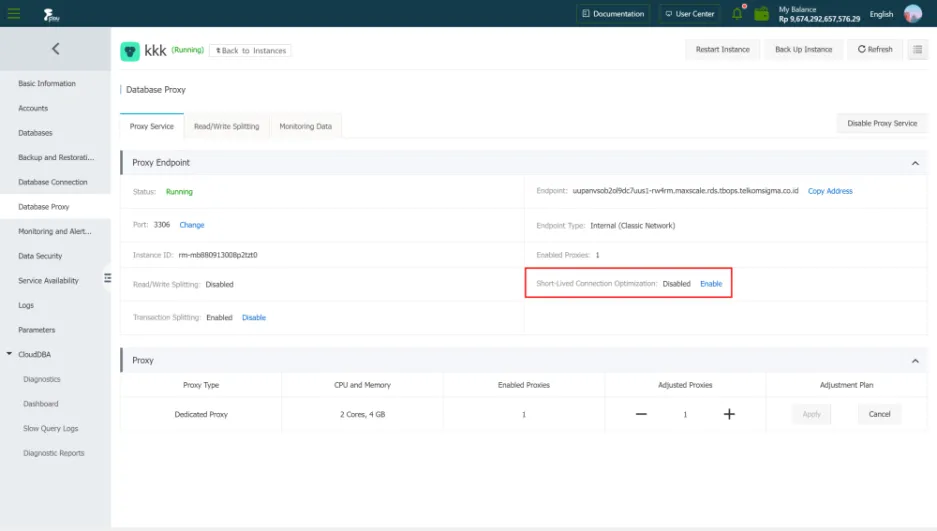

5) In the proxy address area, click Enable on the right of Short Connection Optimization.
-3.5-9.png)
Transaction Split
1) Log in to the RDS console.
-3.5-10.png)
2) On the cloud database management page, click the target instance ID or click Manage under the operation column on the right side of the instance to open the basic information page.
-3.5-11.png)
3) Click Database Proxy in the left navigation bar.
-3.5-12.png)

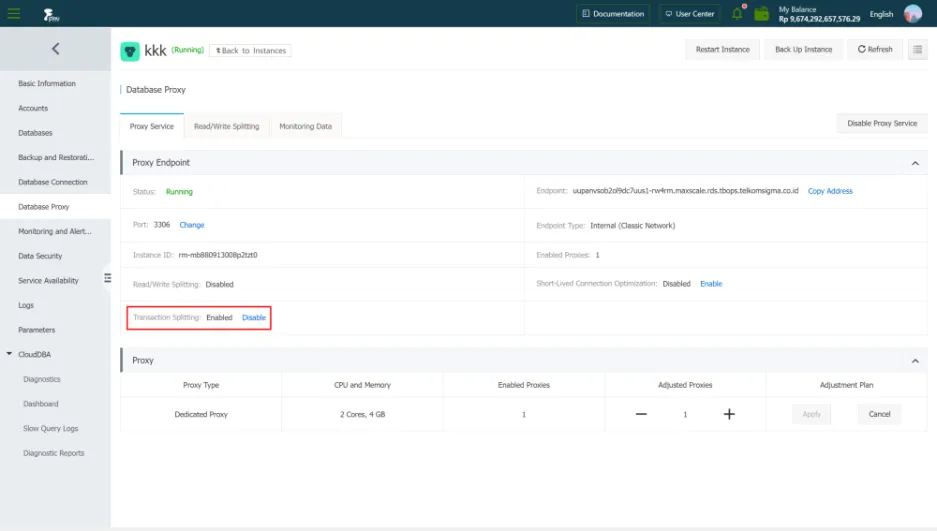

4) Click Activate on the right side of Transaction Split under the Proxy Services tab.
-3.5-13.png)
Read-Write Separation
1) Log in to the RDS console.
-3.5-14.png)
2) On the cloud database management page, click the target instance ID or click Manage under the operation column on the right side of the instance to open the basic information page.
-3.5-15.png)

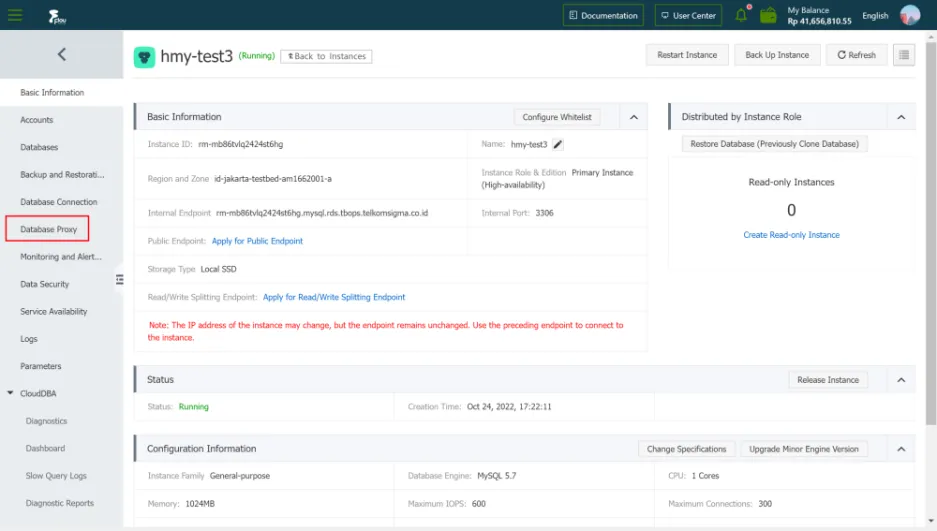

3) Click Database Proxy in the left navigation bar.
-3.5-16.png)

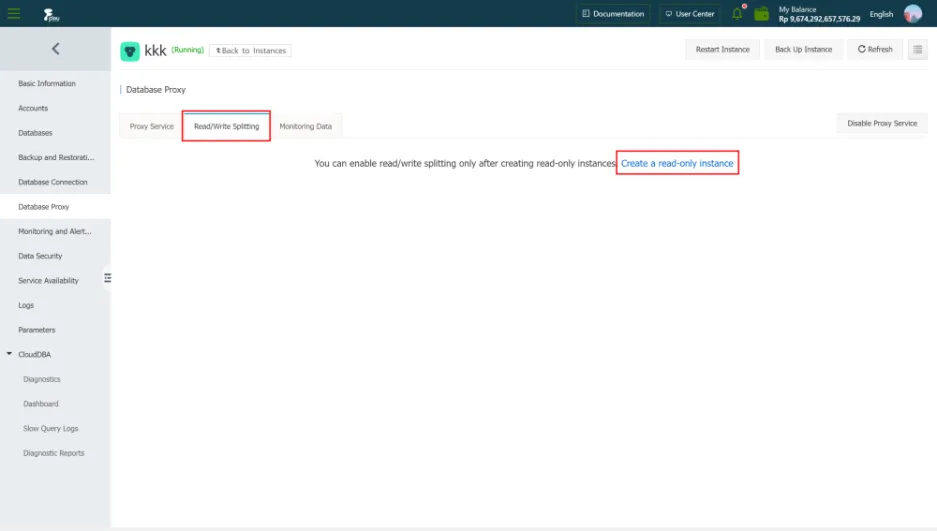

4) Select the Read-Write Separation tab, and click Open Now.
-3.5-17.png)
5) Click OK.
