Monitoring and Alarming
View System Resources and Engine Monitoring

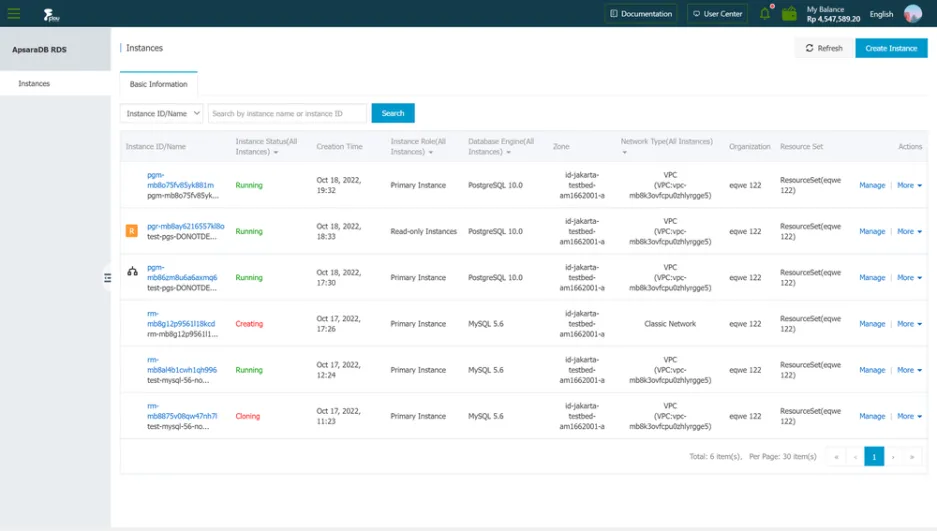

1) Log in to the RDS console.
-3.6-1.png)
2) Click on the ID of the target instance.
-3.6-2.png)
3) In the left navigation bar, click Monitoring and Alarming.
-3.6-3.png)

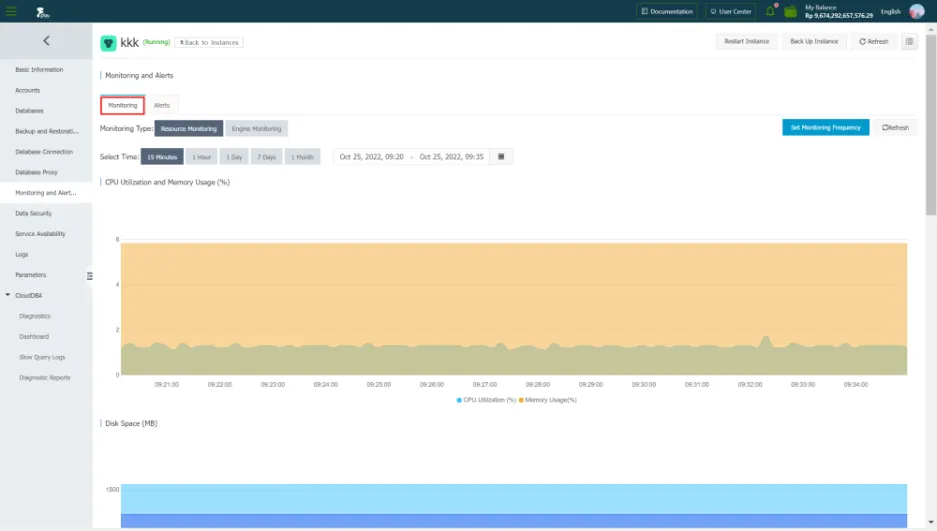

4) On the monitoring and alarm page, select resource monitoring or engine monitoring, and select the query time to view the corresponding monitoring data.
-3.6-4.png)
Set Monitoring Frequency
1) Log in to the RDS console.
-3.6-5.png)

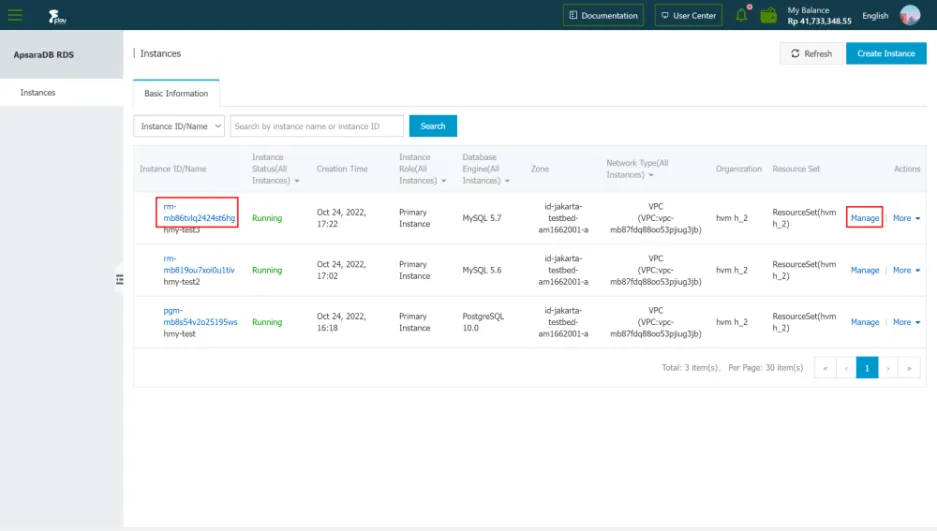

2) On the cloud database management page, click the target instance ID or click Manage under the operation column on the right side of the instance to open the basic information page.
-3.6-6.png)

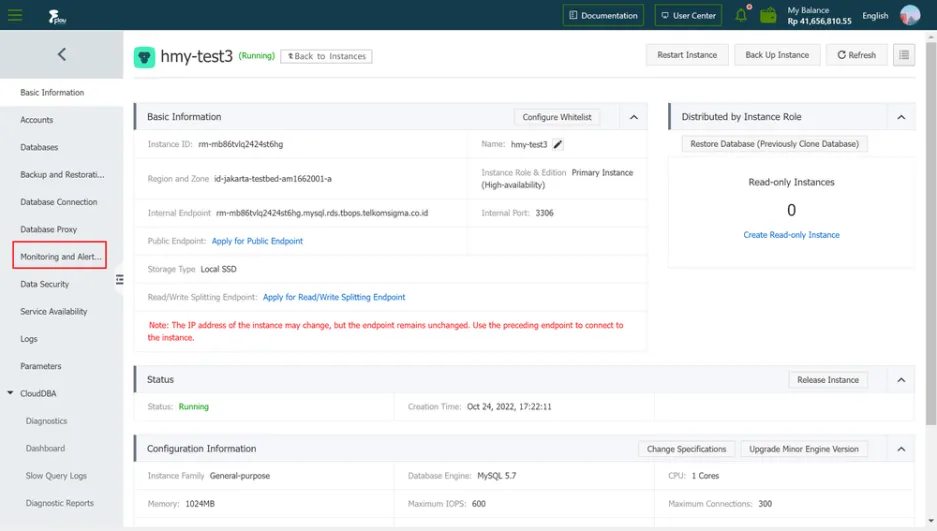

3) In the left navigation bar, click Monitoring and Alarming.
-3.6-7.png)

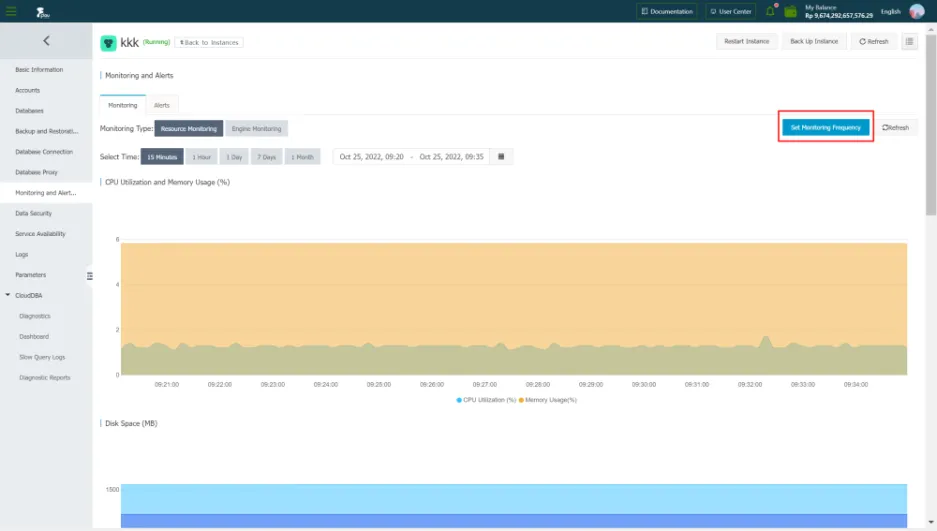

4) On the Resource Monitoring tab, click Monitoring Frequency Settings.
-3.6-8.png)

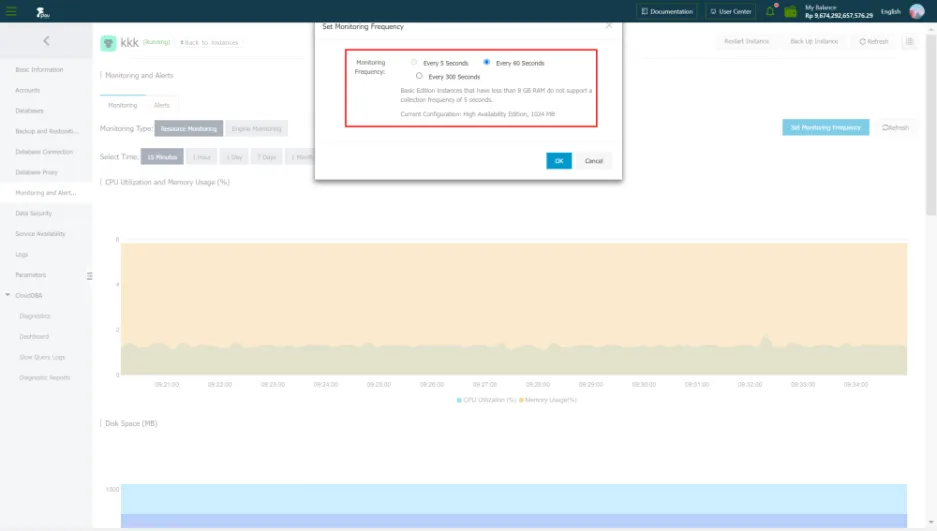

5) In the monitoring frequency setting dialog box, select the monitoring frequency you need
-3.6-9.png)
6) Click OK.
